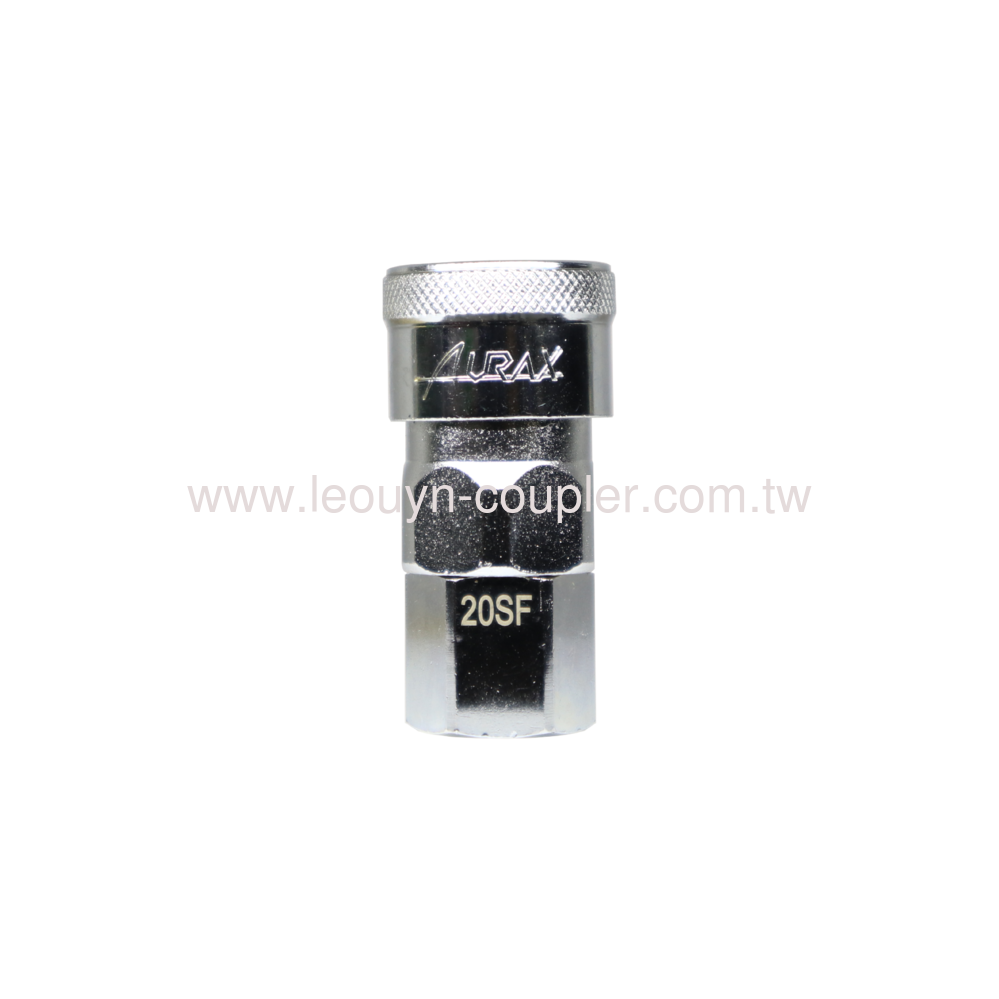

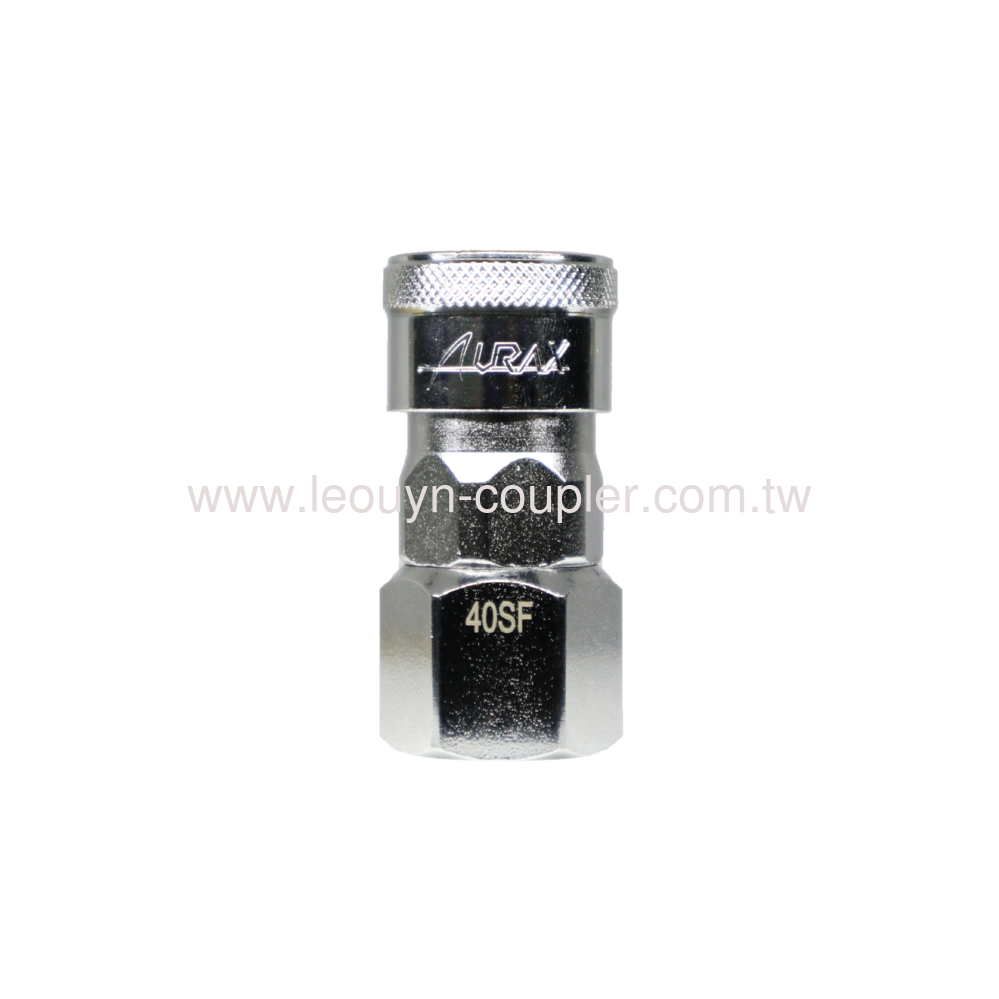

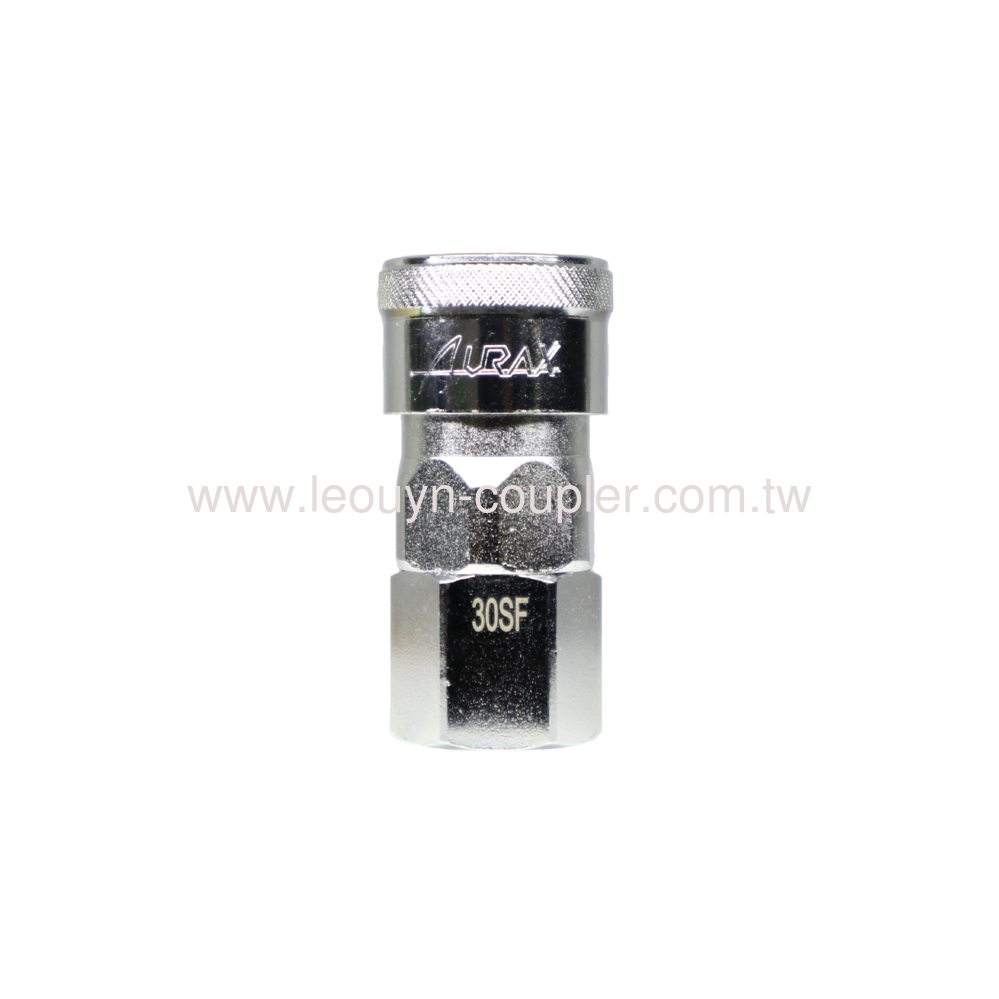

Quick coupler-Female
-Model : 20SF | 30SF | 40SF
-Two-touch opreation
-Compatible for use with Japanese style plug
-Application: For pneumatic equipment or tools
-Working pressure: 10 KG/CM2
-Max working pressure: 15 KG/CM2
-Temperature: -20~+80
-Two-touch opreation
-Compatible for use with Japanese style plug
-Application: For pneumatic equipment or tools
-Working pressure: 10 KG/CM2
-Max working pressure: 15 KG/CM2
-Temperature: -20~+80
|
型號 Model |
A | D | L | H |
| 10SF | 1/8"PT | 26.2 | 49.7 | H19 |
| 20SF | 1/4"PT | 26.2 | 51.7 | H19 |
| 30SF | 3/8"PT | 26.2 | 52.7 | H21 |
| 40SF | 1/2"PT | 26.2 | 54.2 | H24 |
| 400SF | 1/2"PT | 35.8 | 60 | H29 |
| 600SF | 3/4"PT | 35.8 | 60 | H32 |
| 800SF | 1"PT | 35.8 | 66 | H41 |
